Simulation error: Bridge not known 'mupp'

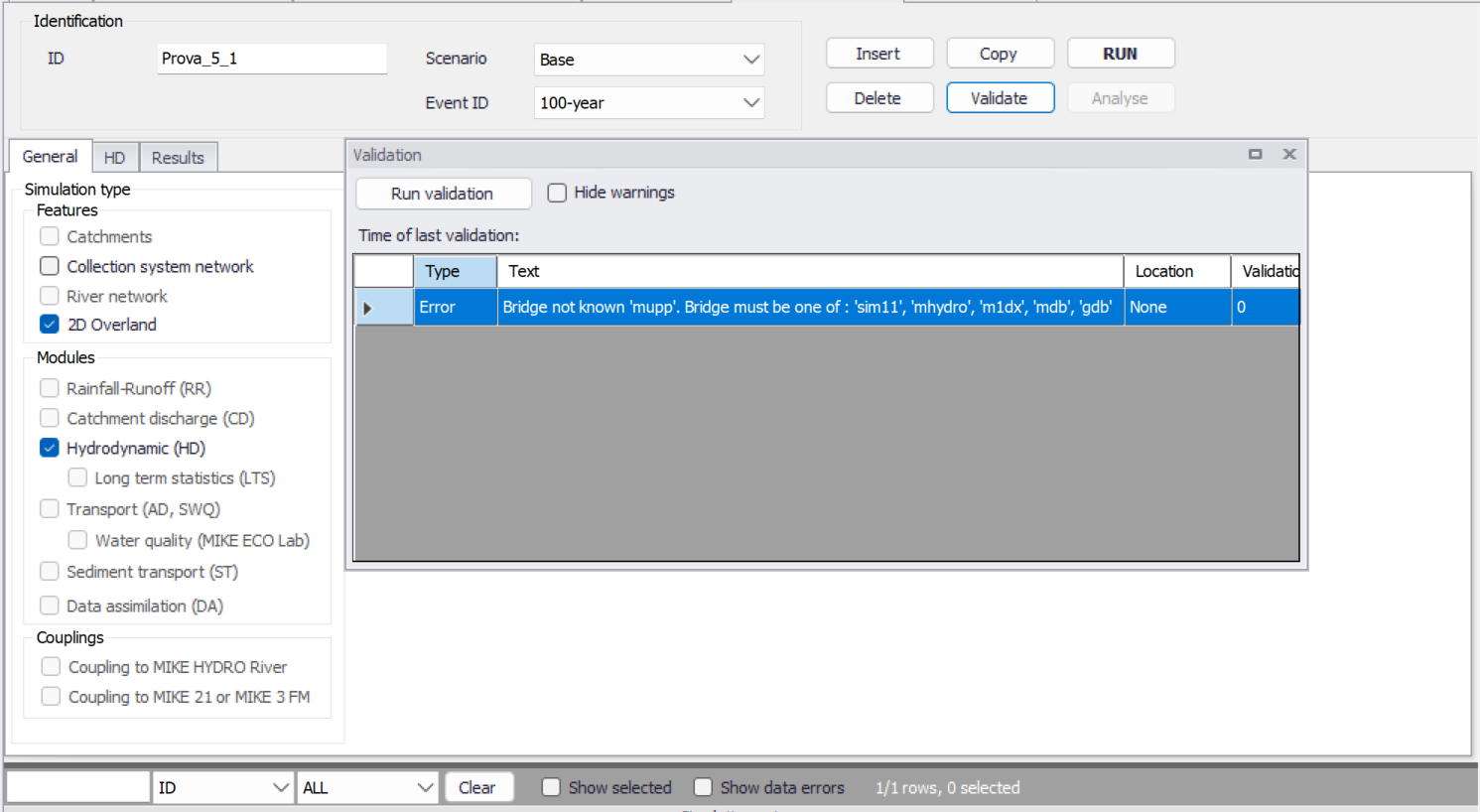

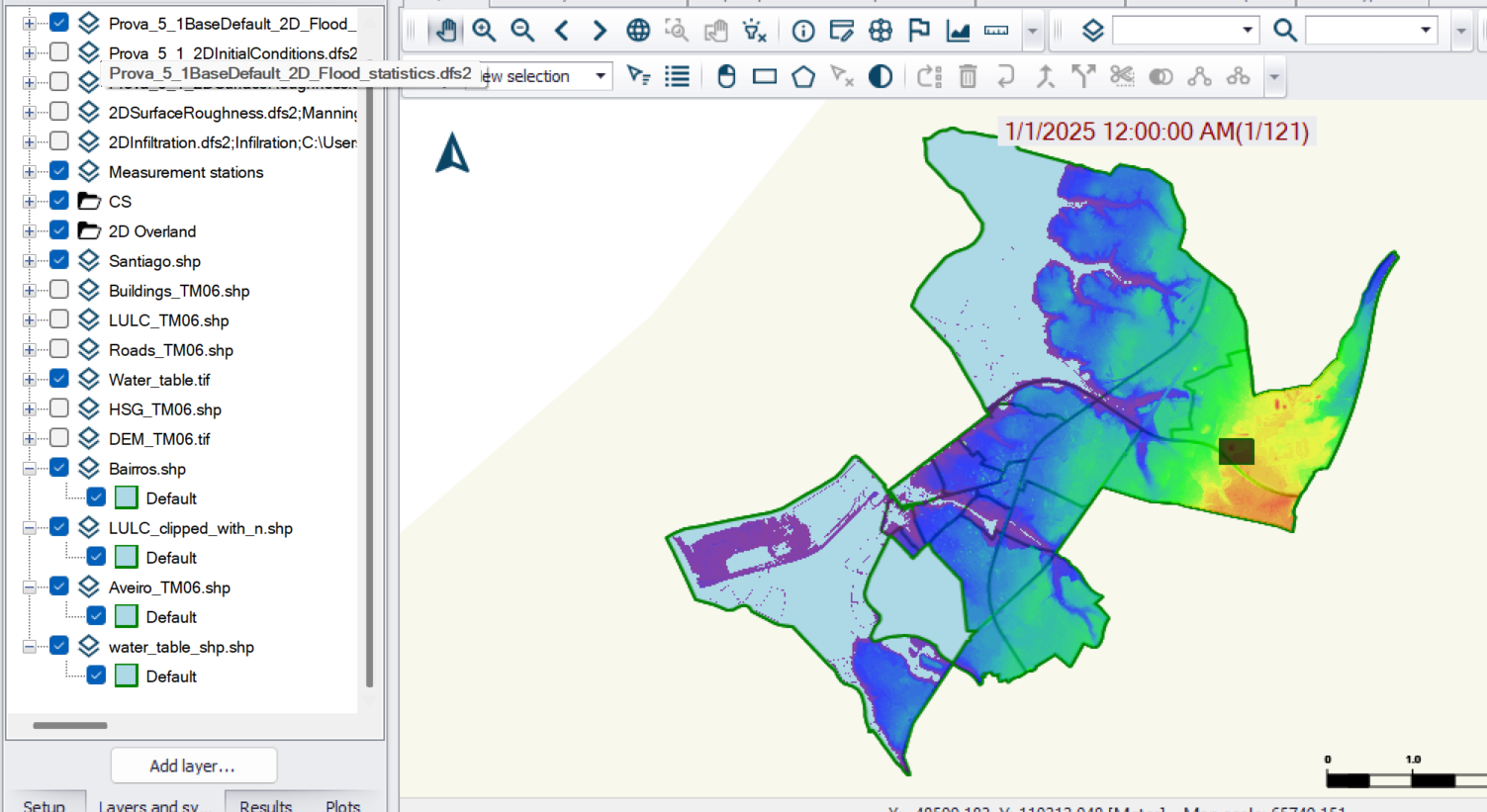

<p data-end=111 data-start=98>Good morning,</p> <p data-end=273 data-start=113>I am a Master’s degree student and, for my thesis, I need to run a 2D simulation in MIKE+. However, I keep getting the following error from the validation tool:</p> <p data-end=369 data-start=275>Bridge not known 'mupp'. Bridge must be one of: 'sim11', 'mhydro', 'm1dx', 'mdb', 'gdb'<br> <br> I am working with the “2D Overland” module. My input data include several shapefiles and TIFF files, which I used to create a roughness map, an infiltration map, and a water level map (2D initial conditions). I also defined three rainfall events with different time periods.</p> <p data-end=843 data-start=680>I have already tried creating a new project from scratch and even reinstalling MIKE+, but the error persists. Do you have any suggestions on how to fix this issue?</p> <p data-end=964 data-start=845>I have very limited experience with this type of modelling, so please let me know if I am missing any important detail.</p> <p data-end=976 data-is-last-node="" data-is-only-node="" data-start=966>I leave here some screen of my project:<br> <br> &#160;</p> <br> <br> <br> <br> <br> &#160;

The Validation tool on the Simulation editor currently only works for network models. It does not work for pure 2D, or even coupled models in that it only looks at the network components and not the 2D nor couplings data. You would have to just go ahead and run the model (and engine validation at runtime would return errors in the log, if any). In any case, you could just examine GUI validation check or x-marks on the interface for the 2D model sections to check if there are data input errors prior to running.
